Product Description:

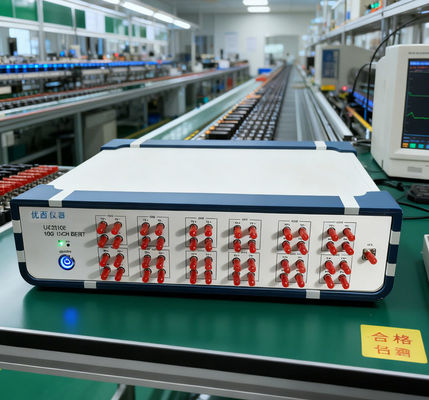

The BERT Tester is a powerful and reliable testing tool designed to meet the demands of high-speed data transmission applications. With a data rate of 622M up to 15Gbps, the BERT Tester, model U9210E, is well-equipped to handle a wide range of testing scenarios with precision and accuracy.
Whether you are testing high-speed data transmission systems, evaluating network performance, or conducting research and development activities, the BERT Tester provides the functionality and accuracy you need to ensure the integrity and quality of your data transmission processes. Trust in the BERT Tester to deliver consistent and reliable results, helping you optimize the performance of your systems and achieve your testing objectives with confidence.
Features:
- Product Name: BERT Tester
- Data rate: 622M Up To 15Gbps
- Place of origin: China
- Rise and fall time (20% to 80%): 18~23ps
- Data output jitter (RMS): 1.5 (10.3125G Down)ps
- Material: Metal
Technical Parameters:
| No. |
parameter
|
minimum
|
typical
|
maximum
|
unit
|
| 1 |
Data rate
|
0.622 |
0.622,1.25,2.125,2.488,2.5,3.07,3.125,4.25,5.0,6.144,6.25,7.5,8.5 ,9.953,10.00,10.3125,10.52,10.709,11.09,11.32,11.7,14.025,15 |
15 |
Gbps |
| 2 |
Code type
|
|
PRBS7,PRBS9,PRBS15,PRBS23,PRBS31 |
|
|
| 3 |
Rise and fall time (20% to 80%)
|
|
18 |
23 |
ps |
| 4 |
Pattern reversal
|
|
Supports signal reversal at the receiving end
|
|
|
| 5 |
Signal output amplitude (single-ended)
|
200 |
800 |
1000 |
mV |
| 6 |
Data output jitter (RMS)
|
|
1.5 (10.3125G down)
|
|
ps |
| 7 |
Data input/output interface
|
|
Differential, AC coupling, 50 ohm impedance, SMA
|
|
|
| 8 |
Clock output
|
100 |
156.25 |
156.25 |
MHz |
| 9 |
Data signal input sensitivity (single-ended)
|
|
0.1 |
|
Vpp |
| 10 |
Data output eye graph intersections
|
50 |
52 |
54 |
% |
| 11 |
Operating temperature
|
10 |
25 |
50 |
°C |
Applications:
The core value of the 15G 12-channel electrical port bit error rate tester lies in the dual efficiency improvement of "full rate + multiple channels". The rate range is 622M to 15G, covering the mainstream electrical signal transmission rate. Twelve independent channels can be used in parallel for testing, significantly reducing the time cost of multi-link verification. Its electrical port design is highly adaptable. In scenarios such as data center equipment testing, telecommunications equipment research and development, and university communication laboratories, it has become an "efficient tool" for bit error rate testing, helping the industry enhance the reliability of communication systems.
