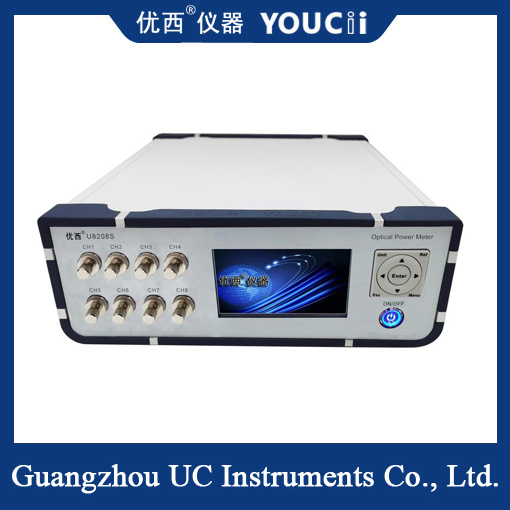

Product Description:
The optical power meter is an important tool for measuring the level of optical power in optical fiber networks. With its reliable performance and user-friendly design, this power meter is suitable for a wide range of applications in the telecommunications industry.
Equipped with a high-quality LCD display, this power meter offers clear and accurate readings of the optical power level. Even under bright lighting conditions, the monitor is easy to read, ensuring that you can easily monitor the power level during testing and troubleshooting tasks.
Technical specification
| Model # |
U8201 |
U8202 |
U8204 |
U820XH |
| Number of Channels |
1 |
2 |
4 |
X |
| Power Range |
+10 ~ -65dBm |
+25 ~ -50dBm |
| Wavelength Range |
850 ~ 1700 nm |
| Calibration Wavelength |
850/980/1310/1490/1550/1610 nm |
| Application Fiber Type |
Standard SM and MM up to 62.5 um core size |
|
Absolute
Uncertainty (accuracy) at reference condition
|
± 4% (1200 nm ~ 1610 nm) |
|
Relative
Uncertainty (accuracy) at reference condition
|
＜ 0.02 dB Typical |
| Linearity (power) |
≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -50dBm) |
| Return Loss |
＞ 40 dB |
| Operation Temperature |
0 ～ +40℃ |
| Storage Temperature |
-30 ～ +80℃ |
| Recalibration Period |
2 years |
| Dimensions |
245 mm W, 105 mm H, 320 mm D |
| Weight |
2.0 kg
|
This power meter features multi-functional data interface options, including USB and RS232 connections, providing convenient connection for data transmission and analysis. You can easily connect the power meter to a computer or other devices to access the measurement data and generate reports for further analysis and recording.
In terms of performance, this optical power meter has a wide range of power measurement capabilities and can provide reliable results. Whether you need to measure high or low power levels, this power meter can handle a wide range of power values, ensuring accurate and consistent readings that meet your testing requirements.
Overall, an optical power meter is a universal and reliable tool for measuring the level of optical power in optical fiber networks. With its user-friendly design, robust structure and advanced functions, this power meter is a valuable asset for professionals in the telecommunications industry.
